Addressable Led Strip

Ginde Star is among the best LED pixel light manufacturers in China that supplies wholesale high-quality intelligent RGB LED strips in bulk.

With more than 6 years of experience in manufacturing different types of LED lights, we can provide you with eco-friendly and customizable lighting solutions that exceed industry standards.

Choosing Ginde Star as your addressable LED strip manufacturer and supplier will help you create innovative lighting projects that exactly match your requirements. Feel free to contact us for your specific needs.






Get FREE Samples

Product Specifications of Cob LED Strips

Featured Models
Custom Options
Product Features & Benefits
Featured Models

Model Name#1 pixel led strip#2 pixel led strip
ColorPixel RGBPixel RGB
Cutting Units3LEDs/ 5cm; 6LEDs/10cm6LEDs/6.25cm
PCB Wide (Min.)6mm/8mm/10mm6mm/8mm/10mm
LED LightSMD5050SMD5050
LED Qty60LEDs/m96LEDs/m
VoltageDC12/24VDC12/24V
Power Consumption14.4W/m23W/m
CRI90Ra/80Ra90Ra/80Ra
Beam Angle160°160°
Bending DirectionVertical/HorizontalVertical/Horizontal
Light Attenuation DegreeWorking 1000 hours < 3%
Working 3000 hours < 5%
Working 1000 hours < 3%
Working 3000 hours < 5%
Thermal Resistance (Tr)< 0.08~0.1℃/W< 0.08~0.1℃/W
Thermal ManagementCool Touch Free Air ConvectionCool Touch Free Air Convection

Custom Options

Strip LengthMax. 10m/roll
Input Voltage5V DC/ 12V DC/24V DC
Color TemperatureWhite/RGB/RGBW
LED qty60LEDs/m, 70LEDs/m,84leds/m,98LEDs/m
PCB Wide10mm/12mm
IC typeP943/P9412/DMX512

Product Features & Benefits

We offer the following RGB individually addressable LED strips:

Contact us for your special requirements so we can customize our LED strip lights according to your lighting project’s specific requirements. Our experts will help you in creating your ideal strip lights.

Why Choose Individually Addressable LED Strips

Our waterproof addressable RGB LED strips produce high-density lights and have individually controlled LEDs. They are perfect in creating multi-colored lighting projects using a single type of programmable LED strip.

Waterproof

You can install our addressable LED strip lights outdoors because they are waterproof. They have a waterproof protection rating of IP65/IP67.

High-Density

Pixel LED strip lights produce high-density lights that can be clearly seen even from far distances. They have focused lights that are perfect for highlighting structures.

High-Power

Smart RGB LED strips are high-power LEDs that produce very bright lights. Even with their small sizes, they can effectively light up dark areas.

Individually-Controlled

Programmable LED strip lights can produce multiple colors in one strip because each LED can be individually controlled. If you want colorful lights, these are perfect for you.

Applications of Pixel LED Strip

Ginde Star’s pixel strips can be used in any application because they are controllable, flexible, and they come in a wide variety of lengths. Moreover, they are perfect for lighting projects that aim to create images in the air.

Architectural Lighting

Pixel LED tapes are ideal for enhancing the atmosphere in architecture. From simple to complicated lighting projects, these lights can produce awesome and unique effects to make any architecture stand-out.

Commercial Lighting

You can use RGB digital LED strip lights to create signages and highlight certain structures in stores, offices, auditoriums, museums, and others. They help attract more customers.

Residential Lighting

Residential Lighting

Do you want to add a little life to your dull home during the holidays and special events? You can install individually-controlled LED strip lights in your kitchen, bathroom, hallway, and others.


Customize Your Addressable Led Strip

More Led Strip Products

P02-7-S02-pic-04

RGBW LED Strip


P02-7-05-S02-pic-01

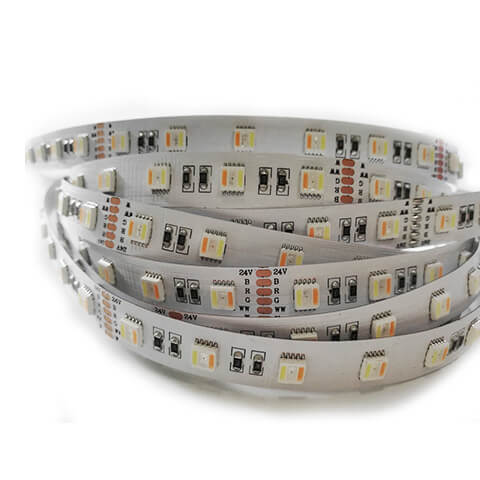

RGBWW LED Strips


P02-7-01-S02-pic-04

COB LED Strips


P02-7-S02-pic-06

CCT LED Strips


P02-7-S02-pic-02

RGB LED Strip Lights


Contents

What is RGB Pixel Strip

RGB Pixel strip lights are types of color-changing LED lighting options that you can program. They allow you to have full control over the strip’s individual LEDs. However, not all LEDs in RGB pixel strips can be individually controlled.

Some manufacturers make pixel strips with controllable groups of LEDs instead of individual LEDs. This control level allows pixel lights to produce dazzling lighting patterns and effects, including videos. Whatever level of control you need, Ginde Star can customize your RGB pixel strips for you.

How Do Addressable LED Strips Work

Below are the key points on how Ginde Star’s addressable LED strips work:

Difference Between RGB LED Strip and Pixel RGB LED Strip

Difference Between RGB LED Strip and Pixel RGB LED Strip

.

Pixel RGB LED Strip

RGB LED Strip

Lighting Perspective

Perfect for creating 3D lighting effects such as flame, comet, rainbow, sunset, and others

Can only produce 2D lighting effects

Colors

Each LED or group of LEDs can be controlled using a digital LED controller to produce different colors at the same time

Cannot be controlled. They can only produce one color at the same time

Controller

They have different controllers. Some only have data channels while others both have data and clock channels

The strip’s RGB pins are connected to the controller’s RGB pins in a straightforward manner

How to Choose the Right Type of Intelligent RGB LED Strip?

Choosing the right pixel strip for your project is important to ensure that you get the results that you really want. Whether you are an interior designer, wholesaler, engineer, and others, you need to know how to properly choose a pixel LED strip light. Below are a few of the things that you need to consider:

Pixel Density

Pixel LED strip lights have different numbers of LEDs per meter. If you want a more focused light, choose one that has more LEDs per meter. Ginde Star has 60 LEDs/meter and 90 LEDs/meter pixel strips.

Power Supply

Pixel lights have different voltage requirements (5V, 12V, and 24V). Choose a pixel light with a power requirement that you can manage.

Waterproof Rating

For the waterproof rating, you have 2 options: IP65 and IP67. IP65-rated pixel lights are coated with flexible clear silicones that can keep dust and water out but you cannot submerge them in water. But, they are rainproof and splashproof. If you want more waterproofing, IP67-rated pixel lights would be ideal. However, they are harder to cut into lengths.

Ginde Star provides different pixel densities, voltage requirements, and waterproof rating options for you to choose from.

Power Supply: 5V vs 12v vs 24v Addressable LED Strip

The more voltage an addressable LED strip needs, the more powerful the lights it can produce. Below are the key differences between 5-V, 12V, and 24-V addressable LED strips:

.

5V Addressable LED Strip

12V Addressable LED Strip

24V Addressable LED strip

Voltage Drop

Voltage drop is a significant limiting factor. It is not ideal for long strips because the LEDs at the end of the strip will have lower brightness.

They can overcome the voltage drop limitation because they can provide additional overhead compared to 5-V pixel lights.

They can handle longer strips without the issue of voltage drops.

Wiring Costs

If you want longer lengths, you need to use a lot of power wires to reduce the voltage drop which can be expensive

You don’t need a lot of extra wiring to create longer strips.

Ideal for large lighting projects because they can save a lot on wiring costs.

Efficiency

They are the most power-efficient systems because they have low power requirements.

They are more than 2x less power efficient compared to 5-V systems but are ideal for medium projects.

Although they have the most power requirement to operate, 24-V lighting systems can be efficient in very large projects.

Ginde Star offers 12V and 24V addressable LED strip lights to ensure efficiency and prevent voltage drops as well as reduce your wiring costs.

IC LED Chips: WS2811 vs WS2812 vs WS2812b Addressable LED Strip

IC (Integrated Circuit) Chips allow digital LED strips, such as addressable LED strips, allow you to control individual LEDs or sections of LEDs in the strip. The type of chip an addressable LED strip has will affect the efficiency of the strip. Below is a comparison between WS2811, WS2812, and WS2812b IC chips:

.

WS2811 Addressable LED Strip

WS2812 Addressable LED Strip

WS2812b Addressable LED Strip

IC

External IC

Built-in IC

Built-in IC

Wires

3 Output + Positive + Ground

 +Single Data line

2 Positive + Negative

 +Single Data line + NC Pin

Positive + Negative

 +Single Data line

Pins

8 pins

6 pins

4 pins

Voltage

DC 12V

DC 5V

DC 5V

Color

RGB

RGB

RGB

Diodes

30 or 60 per meter

30, 60, 74, 96 or 144 pixels  per meter

30, 60, 74, 96 or 144 pixels per meter

WS2812B is an improved chip based on WS2812. Their main difference is that WS2812B has lesser pins which provide many advantages:

WS2811has the most number of pins and has a higher operating voltage which makes it the least efficient one. Plus, it can only have a maximum of 60 LEDs per meter.

Ginde Star can customize addressable LED strips to use the IC LED chip you want to match your needs.

LED Types: SMD 5050 Digital LED Strip VS SMD 3528 Digital LED Strip

Digital LED strips use different LEDs. Two of the most common LEDs are SMD 5050 and SMD 3528. Here are the differences between digital LED strips using SMD 5050 and SMD 3528 LEDs:

.

SMD 5050 Digital LED Strip

SMD 3528 Digital LED Strip

LED Dimensions

5mm x 5mm

3.5mm x 2.8mm

LED Diodes

3 Diodes in one housing (tri-chip)

1 diode per LED

Brightness

Brighter compared to SMD 3528 (3x light output compared to 3528 strips)

Individual chips might not be as bright as 5050 chips but they can be brighter when used in higher quantities

Heat Production

Produces more heat

Since they have smaller chips, they produce less heat

Colors

They can produce millions of color variations per LED

Can only produce one light color per LED

Ginde Star’s addressable LED strips use SMD 5050 chips so you will have millions of bright light color choices.
