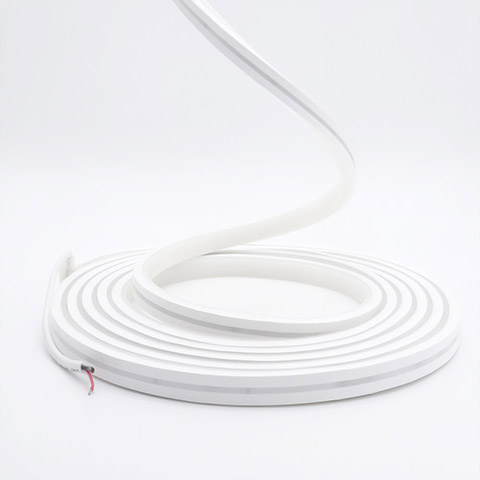

  • wateproof IP67 tri view 10x10mm vertical bending silicone neon flex linear

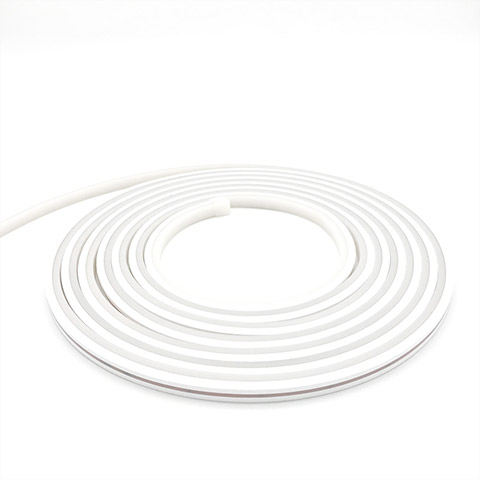

  • Tri view 10x10mm silicone neon flex linear light
  • Vertical bending 16x16mm led neon flex linear lights

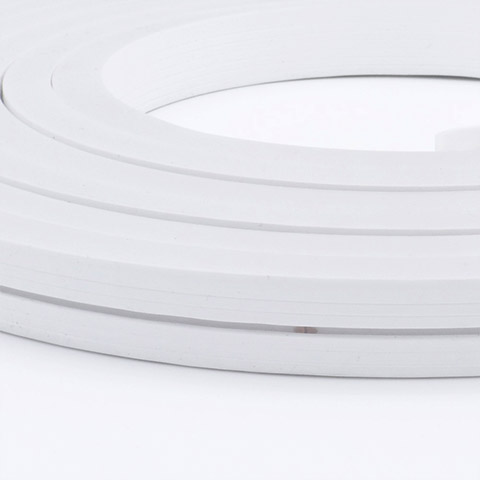

  • mm silicone neon flex linear with clear cutting mark for DIY lighting

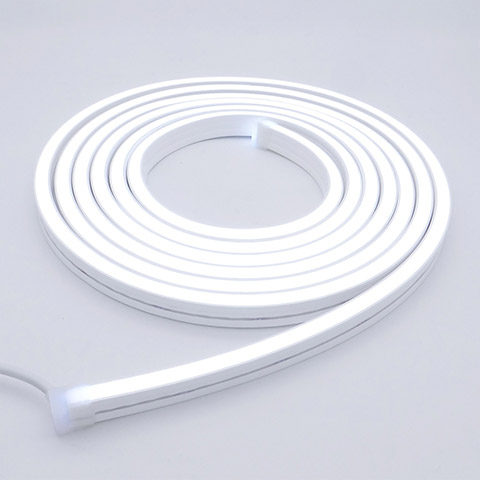

  • mm LED Neon Flex Linear white warm white 2.5cm cuttable

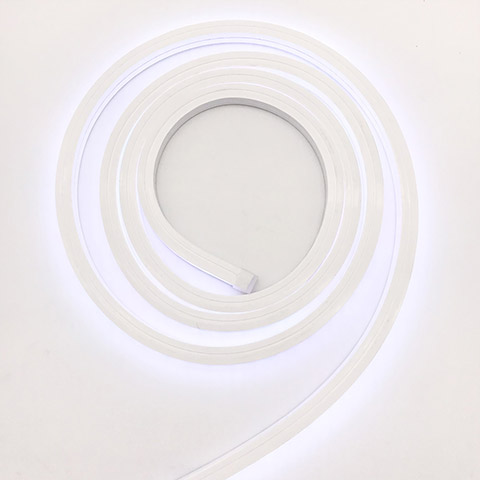

  • mm vertical bending silicone neon flex linear 2.5cm cuttable
  • vertical bending 10x10mm silicone mini neon flex linear 1
  • wateproof IP67 tri view 10x10mm vertical bending silicone neon flex linear
  • Tri view 10x10mm silicone neon flex linear light
  • Vertical bending 16x16mm led neon flex linear lights
  • mm silicone neon flex linear with clear cutting mark for DIY lighting
  • mm LED Neon Flex Linear white warm white 2.5cm cuttable
  • mm vertical bending silicone neon flex linear 2.5cm cuttable

Product Comprehension

Silicone neon flex plays the main role in this series for its remarkable aging resistance, softness, and long lifespan. Besides, in this category, there are both side and vertical bending flexible tube lights or linear lights, which are ideal for the lighting design, interior and exterior display.

The flat or square profile is making this series an excellent choice for recessed mounting. The splendid weatherproof and waterproof features even allow for the installation without aluminum channels, for this series can fit right in all corners with no connectors involved.

  • CE logo 3
  • RoHS logo 3
  • REACH logo 3
  • UL logo 3
Get FREE Samples
  • Benefits
  • Features
  • Specifications
  • Applications
  • More

Why Our Neon Flex Linear

Aesthetic and sleek options for linear structure designs and layouts.

  • Seamless Effect

    With the even and smooth linear exterior, neon flex linear light presents a perfectly dot-free lighting effect from start till end along its length.

  • Outdoor Indoor Adaptive

    Well received both for exterior building outlines, commercial lighting, and interior linear illumination decorations. Accommodative to all circumstances.

  • Bending Friendly

    With both side and vertical bending features, this series are popular to be applied to the linear outline lighting of panels, closets, cabinets, wardrobes.

Product Features

• Superior Epistar SMD LED chips.

• Protection circuit built right in.

• Heat-resistant, energy conserving, nature friendly.

• Excellent color consistency, smooth lighting with no dots.

• High luminance with up to 460 lumen per meter.

• Dimmable with a DMX512 controller.

• Corrosion-resistant and waterproof, durable and efficient.

• 3 years of warranty.

  • P02 4 S05 icon1

    Flame Resistant

  • P02 4 S05 icon2

    UV Resistant

  • P02 4 S05 icon3

    Solvent Resistant

  • P02 4 S05 icon4

    Saltwater Resistant

  • P02 4 S05 icon5

    IP67/68 Protection

  • P02 4 S05 icon6

    IK08 Security

Product Specifications

  • Featured Models
  • Custom Options
  • Accessories
  • Packaging
  • Model Name6x12mm Silicone Linear10x10mm Silicone Linear10x18mm Silicone Linear10x20mm Silicone Linear11x19mm PVC Linear12x20mm Silicone Linear15x15mm Silicone Linear16x16mm PVC Linear
    Model No.GS-FNF612-12/24-CCGS-FNS1010-12/24-CCGS-FNF1018-12/24-CCGS-FNF1020-12/24-CCGS-FNF1119-12/24/110/220-CCGS-FNF1220-12/24-CCGS-FNS1515-12/24-CCGS-FNS1616-12/24/110/220-CC
    Dimension6x12mm10x10mm10x18mm10x20mm11x19mm12x20mm15x15mm16x16mm
    Bending Diameter(Min.)30mm80mm100mm120mm120mm120mm150mm150mm
    LED LightSMD2835 LEDSMD2835 LEDSMD2835 LEDSMD2835 LEDSMD2835 LEDSMD2835 LEDSMD2835 LEDSMD2835 LED
    LED Qty120LEDs/m168LEDs/m120LEDs/m120LEDs/m120LEDs/m120LEDs/m168LEDs/m120LEDs/m
    LED Spacing8.33mm5.95mm8.33mm8.33mm8.33mm8.33mm5.95mm8.33mm
    Cutting Interval(Min.)25mm25mm25mm / 50mm25mm / 50mm250mm25mm / 50mm25mm / 50mm250mm
    Power Consumption10±2W10±2W10±2W10±2W10±2W10±2W10±2W10±2W
    Working voltage12V/24 DC12V/24 DC12V / 24V DC12V / 24V DC12V / 24V DC; 110V/220V AC12V / 24V DC12V / 24V DC12V / 24V DC; 110V/220V AC
    CRI>80Ra>80Ra>80Ra>80Ra>80Ra>80Ra>80Ra>80Ra
    Light surfaceFlat ShapeSquare ShapeFlat ShapeFlat ShapeFlat ShapeFlat ShapeSquare ShapeSquare Shape
    Beam Angle160°320°160°160°160°160°160°160°
    Bending DirectionSide/HorizontalVerticalSide/HorizontalSide/HorizontalSide/HorizontalSide/HorizontalVertical/HorizontalVertical
    MaterialSiliconeSiliconeSiliconeSiliconePVCSiliconeSiliconePVC
    IP ratingIP67IP67IP67IP67IP65IP67IP67IP65
  • LED chipEpistar, SANAN, Osram,  More on Request
    Cutting Mark(Min.)25mm(3LEDs)@12V DC; 50mm (6LEDs)@ 24V DC; 1000mm(120LEDs)@ 110V/220V AC
    Input Voltage12V/24 DC; 110V/220V AC
    Jacket colorWhite/Red/Green/Light Green/Blue/Ice Blue/Yellow/Orange/Soft Pink/Rose Pink/Purple
    Color Temperature2500K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K,6500K,Red, Green, Blue, Yellow, Amber, Pink, Purple
    Packing Lengthmax.50meters/roll

  • Standard mounting accessories and custom parts tailored to your project are both accessible with Ginde Star.

    • mm straight line bottom left and right outlet plug front cap and end cap

      6X12mm straight line, bottom, left and right outlet plug front cap and end cap

    • 111901

    • Aluminum mounting bracket B for silicone neon flex linear

      Aluminum mounting bracket B for silicone neon flex linear

    • bottom right left outlet plug front caps for silicone neon flex linear 12x20mm

      bottom right left outlet plug front caps for silicone neon flex linear 12x20mm

    • flexible mounting chain of silicone neon linear 15x15mm

      flexible mounting chain of silicone neon linear 15x15mm

    • stainless steel mounting clips for silicone neon flex 15x15mm 12x20mm

      stainless steel mounting clips for silicone neon flex 15x15mm 12x20mm

    • straight bottom and 90degree outlet plug front cap for 10x10mm silicone neon flex linear

      straight bottom and 90degree outlet plug front cap for 10x10mm silicone neon flex linear

    • straight outlet and right left bottom outlet front cap for 15x15mm silicone neon flex linear

      straight outlet and right left bottom outlet front cap for 15x15mm silicone neon flex linear

  • Standard packaging and bespoke packaging are both available to meet the specific demands of your project.

    Standard Inner Packaging

    • Option 1: Carrier Plate

      • Reel Packaging: 50m each plate

      • Gross Weight: 22kg each carton

      50m roll mini neon flex 8x16mm reel package 50m roll mini neon flex reel package
    • Option 2: Anti-static Bag

      • Anti-static Packaging: 5m each bag

      • Gross Weight: 1.5kg each carton

      P02 4 S06 pic4 6

    Standard Outer Packaging

    • Carton:

      Reel Packaging – 34x34x32cm

      Anti-static Packaging – 38x40x15cm

      cartons for 50m mini neon flex

Suitable Applications

The mini neon led is a very customizable product. Due to its flexibility and easy installation, it could be used for various applications that range from marketing to art. Ginde Star produces mini flex in various colors. This makes it perfect for neon light store signs that are meant to attract the customer’s attention. The mini flex could also be used for neon light artwork because it can be formed into eye-catching shapes and designs with minimal effort. It has a more light-weight design that makes it perfect for delicate and meticulous lighting projects.

  • P02 3 S07 pic1

    Hotel

  • P02 3 S07 pic2

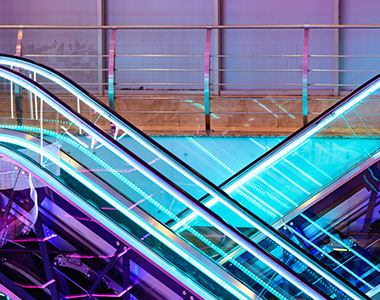

    Escalator/Lift

  • P02 3 S07 pic3

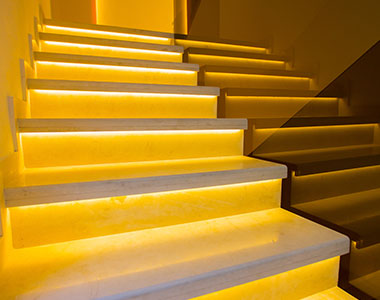

    Step/Stairs

  • P02 3 S07 pic4

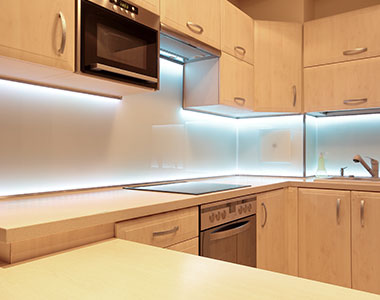

    Cabinet

  • P02 3 S07 pic5

    Motor Vehicle

  • P02 3 S07 pic6

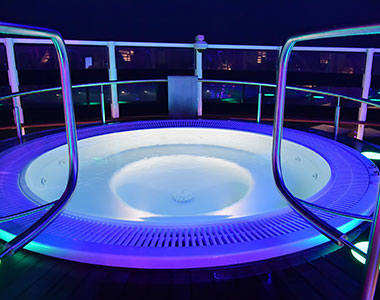

    Marine/Yacht/Boat
